Detailed description
| Model |
M12*1*35mm |
M12*1*45mm |
||
| Install Method | Flush | Non-Flush | Flush | Non-Flush |
| Scanning Distance | 2mm / 4mm | 4mm / 8mm | 2mm / 4mm | 4mm / 8mm |
| Amplifier | Built-in | Built-in | ||
| Recommened Distance | 1.6mm / 3.2mm | 3.2mm / 6.4mm | 1.6mm / 3.2mm | 3.2mm / 6.4mm |
| Response Friquency | 2KHz / 1KHz | 2KHz / 800Hz | 2KHz / 1KHz | |
| Hysteresis | <15%(Sr) | <15%(Sr) | <15%(Sr) | |
| Operating Voltage | DC:10～30VDC±10%/ | |||
| Current Consumption | <10mA | |||
| Load Current | 150mA Max | |||
| Leakage Current | <0.01mA | |||
| Residual Votage | <1.5V | |||
| Operating Temperature | -25°C～+70°C | |||
| Circuit Protections | Max.180mA overload, short-circuit protection | |||
| Shock/vibration | IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2 | |||
| EMC | RFI>3V/M / EFT>1KV / ESD>4KV(contact) | |||
| Material | Copper with nickel coat, PBT | |||
| Wiring Method | PVC φ4×2M/3-wires | |||
| Protection Degree | IP67 | |||

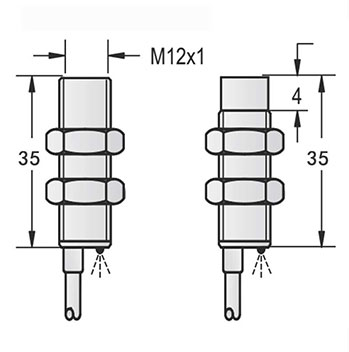

| 35mm Thread version: M12*1*35mm | ||||
| Models |
Sensing Face |
Max. Sensing Range |
Standare Targets | Outputs |
| S1T-B1202N-O3S2 | M12 (Flush) | ▄2mm | 12×12×1(iron) | 3-wire NPN. N.O. |
| S1T-B1202N-C3S2 | 3-wire NPN. N.C. | |||
| S1T-B1202P-O3S2 | M12 (Flush) | ▄2mm | 12×12×1(iron) | 3-wire PNP. N.O. |
| S1T-B1202P-C3S2 | 3-wire PNP. N.C. | |||
| S2T-B1204N-O3S2 | M12 (Non-Flush) | ▄ 4mm | 12×12×1(iron) | 3-wire NPN. N.O. |
| S2T-B1204N-C3S2 | 3-wire NPN. N.C. | |||
| S2T-B1204P-O3S2 | M12 (Non-Flush) | ▄ 4mm | 12×12×1(iron) | 3-wire PNP. N.O. |
| S2T-B1204P-C3S2 | 3-wire PNP. N.C. | |||
| S1T-B1204N-O3S2 | M12 (Flush) | ▄▄4mm | 12×12×1(iron) | 3-wire NPN. N.O. |
| S1T-B1204N-C3S2 | 3-wire NPN. N.C. | |||
| S1T-B1204P-O3S2 | M12 (Flush) | ▄▄4mm | 12×12×1(iron) | 3-wire PNP. N.O. |
| S1T-B1204P-C3S2 | 3-wire PNP. N.C. | |||
| S2T-B1208N-O3S2 | M12 (Non-Flush) | ▄▄ 8mm | 24×24×1(iron) | 3-wire NPN. N.O. |
| S2T-B1208N-C3S2 | 3-wire NPN. N.C. | |||
| S2T-B1208P-O3S2 | M12 (Non-Flush) | ▄▄ 8mm | 24×24×1(iron) | 3-wire PNP. N.O. |
| S2T-B1208P-C3S2 | 3-wire PNP. N.C. | |||

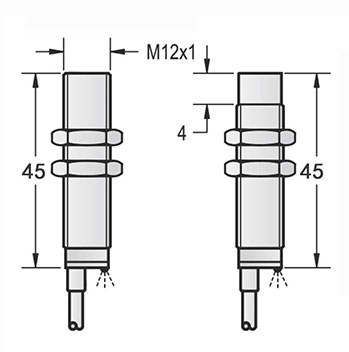

| 45mm Thread version: M12*1*45mm | ||||
| Models |
Sensing Face |
Max. Sensing Range |
Standare Targets | Outputs |
| S1T-B1202N-O3A2 | M12 (Flush) | ▄2mm | 12×12×1(iron) | 3-wire NPN. N.O. |
| S1T-B1202N-C3A2 | 3-wire NPN. N.C. | |||
| S1T-B1202P-O3A2 | M12 (Flush) | ▄2mm | 12×12×1(iron) | 3-wire PNP. N.O. |
| S1T-B1202P-C3A2 | 3-wire PNP. N.C. | |||
| S2T-B1204N-O3A2 | M12 (Non-Flush) | ▄ 4mm | 12×12×1(iron) | 3-wire NPN. N.O. |
| S2T-B1204N-C3A2 | 3-wire NPN. N.C. | |||
| S2T-B1204P-O3A2 | M12 (Non-Flush) | ▄ 4mm | 12×12×1(iron) | 3-wire PNP. N.O. |
| S2T-B1204P-C3A2 | 3-wire PNP. N.C. | |||
| S1T-B1204N-O3A2 | M12 (Flush) | ▄▄4mm | 12×12×1(iron) | 3-wire NPN. N.O. |
| S1T-B1204N-C3A2 | 3-wire NPN. N.C. | |||
| S1T-B1204P-O3A2 | M12 (Flush) | ▄▄4mm | 12×12×1(iron) | 3-wire PNP. N.O. |
| S1T-B1204P-C3A2 | 3-wire PNP. N.C. | |||
| S2T-B1208N-O3A2 | M12 (Non-Flush) | ▄▄ 8mm | 24×24×1(iron) | 3-wire NPN. N.O. |
| S2T-B1208N-C3A2 | 3-wire NPN. N.C. | |||
| S2T-B1208P-O3A2 | M12 (Non-Flush) | ▄▄ 8mm | 24×24×1(iron) | 3-wire PNP. N.O. |
| S2T-B1208P-C3A2 | 3-wire PNP. N.C. | |||
| S□T-B12*□-□3S2 | S□T-B12*□-□3A2 |
 |
 |
