Detailed description
| Response Friquency | 400 Hz | |||
| Switching Hysteresis | <15%(Sr) | |||
| Response Time | 0.5ms | |||
| Operating Voltage | DC:10～30VDC±10%/ | |||
| Repeat Accuracy | <3.0%/5.0%(Sr) | |||
| Load Current | 150mA Max | |||
| Overload Trip Point | 150mA | |||
| Residual Votage | <1.5V | |||
| Operating Temperature | -25°C～+150°C | |||
| Circuit Protections | -- | |||
| Shock/vibration | IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2 | |||
| EMC | RFI>3V/M / EFT>1KV / ESD>4KV(contact) | |||
| Material | Stainless steel，Teflon sensing face | |||
| Wiring Method | φ3(φ4)×2M/3-wires silicone cable | |||
| Protection Degree | IP67 | |||
| Models |
Sensing Face |
Max. Sensing Range |
Standare Targets | Outputs |
| S1T-B1202N-O3B2/150 | M12 (Flush) | ▄▄ 2mm | 12×12×1(iron) | NPN.NO. |
| S1T-B1202N-C3B2/150 | NPN.NC. | |||
| S1T-B1202P-O3B2/150 | PNP.NO. | |||
| S1T-B1202P-C3B2/150 | PNP.NC. | |||
| S2T-B1204N-O3B2/150 | M12 (Non-Flush) | ▄▄ ▄4mm | 12×12×1(iron) | NPN.NO. |
| S2T-B1204N-C3B2/150 | NPN.NC. | |||
| S2T-B1204P-O3B2/150 | PNP.NO. | |||
| S2T-B1204P-C3B2/150 | PNP.NC. | |||
| S1T-B1805N-O3B2/150 | M18 (Flush) | ▄▄ ▄5mm | 18×18×1(iron) | NPN.NO. |
| S1T-B1805N-C3B2/150 | NPN.NC. | |||
| S1T-B1805P-O3B2/150 | PNP.NO. | |||
| S1T-B1805P-C3B2/150 | PNP.NC. | |||
| S2T-B1808N-O3B2/150 | M18 (Non-Flush) | ▄▄ ▄▄8mm | 24×24×1(iron) | NPN.NO. |
| S2T-B1808N-C3B2/150 | NPN.NC. | |||
| S2T-B1808P-O3B2/150 | PNP.NO. | |||
| S2T-B1808P-C3B2/150 | PNP.NC. | |||
| S1T-B3010N-O3B2/150 | M30 (Flush) | ▄▄ ▄▄10mm | 30×30×1(iron) | NPN.NO. |
| S1T-B3010N-C3B2/150 | NPN.NC. | |||
| S1T-B3010P-O3B2/150 | PNP.NO. | |||
| S1T-B3010P-C3B2/150 | PNP.NC. | |||
| S2T-B3015N-O3B2/150 | M30 (Non-Flush) | ▄▄ ▄▄▄15mm | 45×45×1(iron) | NPN.NO. |
| S2T-B3015N-C3B2/150 | NPN.NC. | |||
| S2T-B3015P-O3B2/150 | PNP.NO. | |||
| S2T-B3015P-C3B2/150 | PNP.NC. |

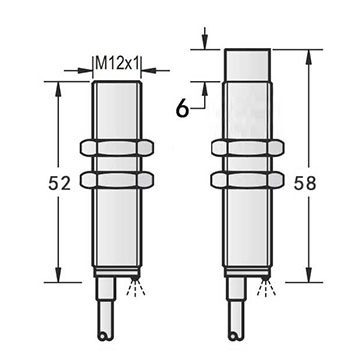

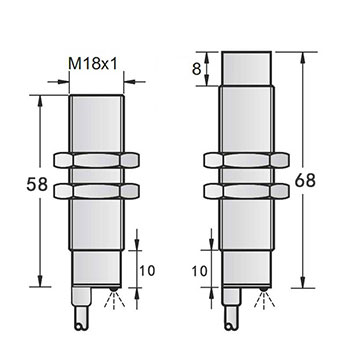

| S□T-B120□□-□3B2/150 (M12) | S□T-B180□□-□3B2/150 (M18) |
|
|

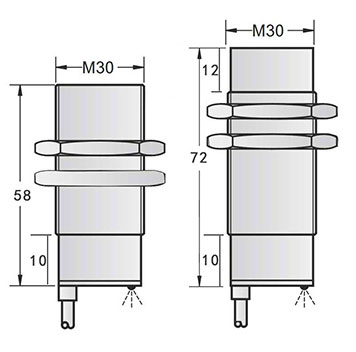

| S□T-B30□□□-□3B2/150 (M30) | |
|
|
