Detailed description
| Response Friquency | 300Hz / 400Hz | |||
| Switching Hysteresis | <15%(Sr) | |||
| Response Time | 0.5ms | |||
| Operating Voltage | DC:10～30VDC±10%/ | |||
| Repeat Accuracy | <3.0%/5.0%(Sr) | |||
| Load Current | 150mA Max | |||
| Overload Trip Point | 180mA | |||
| Residual Votage | <1.5V | |||
| Operating Temperature | -25°C～+70°C | |||
| Circuit Protections | Max.120mA overload, short-circuit protection | |||
| Shock/vibration | IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2 | |||
| EMC | RFI>3V/M / EFT>1KV / ESD>4KV(contact) | |||
| Material | Metallic Housing, PVC cable | |||
| Wiring Method | PVC φ3(φ5)×2M/3-wires (connector type offered) | |||
| Protection Degree | IP67 | |||
| Models |
Sensing Face |
Max. Sensing Range |
Standare Targets | Outputs |
|
S1T–M0802N-O3A2 |
M8 (Flush) | ▄▄ 2mm | -- | NPN.NO. |
| S1T–M0802N-C3A2 | NPN.NC. | |||
| S1T–M0802P-O3A2 | PNP.NO. | |||
| S1T–M0802P-C3A2 | PNP.NC. | |||
| S2T–M0803N-O3A2 | M8 (Non-Flush) | ▄▄ ▄ 3mm | -- | NPN.NO. |
| S2T–M0803N-C3A2 | NPN.NC. | |||
| S2T–M0803P-O3A2 | PNP.NO. | |||
| S2T–M0803P-C3A2 | PNP.NC. | |||

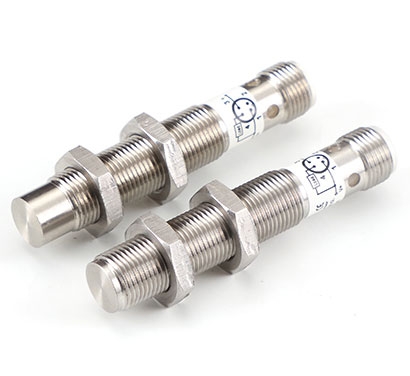

| S1T–M120☐N-O3A2 | M12 (Flush) |
▄▄ 2mm or 4mm ("☐" filled with 2 or 4) |
-- | NPN.NO. |
| S1T–M120☐N-C3A2 | NPN.NC. | |||
| S1T–M120☐P-O3A2 | PNP.NO. | |||
| S1T–M120☐P-C3A2 | PNP.NC. | |||
| S2T–M1204N-O3A2 | M12 (Non-Flush) | ▄▄ ▄ 4mm | -- | NPN.NO. |
| S2T–M1204N-C3A2 | NPN.NC. | |||
| S2T–M1204P-O3A2 | PNP.NO. | |||
| S2T–M1204P-C3A2 | PNP.NC. | |||
| S1T–P180☐N-O3A2 | M18 (Flush) |
▄▄ ▄▄ 5mm
or 8mm ("☐" filled with 5 or 8) |
-- | NPN.NO. |
| S1T–P180☐N-C3A2 | NPN.NC. | |||
| S1T–P180☐P-O3A2 | PNP.NO. | |||
| S1T–P180☐P-C3A2 | PNP.NC. | |||
| S2T–P1808N-O3A2 | M18 (Non-Flush) | ▄▄ ▄▄ 8mm | NPN.NO. | |
| S2T–P1808N-C3A2 | NPN.NC. | |||
| S2T–P1808P-O3A2 | PNP.NO. | |||
| S2T–P1808P-C3A2 | PNP.NC. | |||

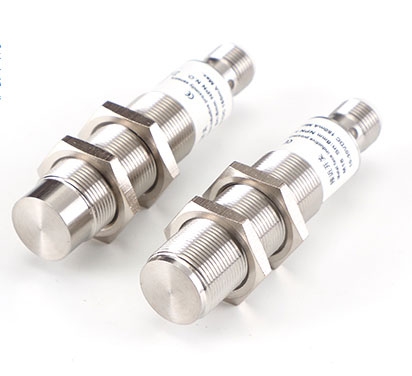

| S1T–M3010N-O3A2 | M30 (Flush) | ▄▄ ▄▄▄ 10mm | -- | NPN.NO. |
| S1T–M3010N-C3A2 | NPN.NC. | |||
| S1T–M3010P-O3A2 | PNP.NO. | |||
| S1T–M3010P-C3A2 | PNP.NC. | |||
| S2T–M3015N-O3A2 | M30 (Non-Flush) | ▄▄ ▄▄▄▄ 15mm | -- | NPN.NO. |
| S2T–M3015N-C3A2 | NPN.NC. | |||
| S2T–M3015P-O3A2 | PNP.NO. | |||
| S2T–M3015P-C3A2 | PNP.NC. |

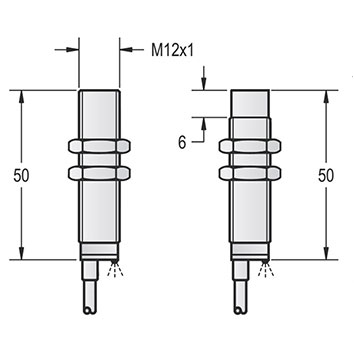

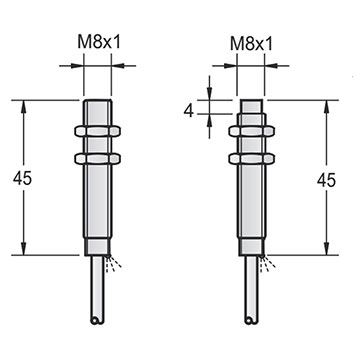

| S-I□S08-C□ | S-I□S12-C□ |
|
|

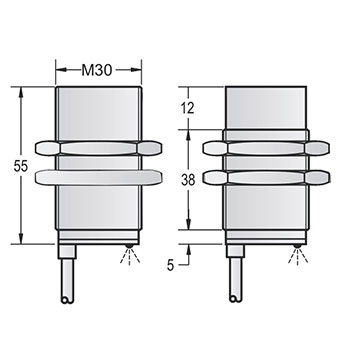

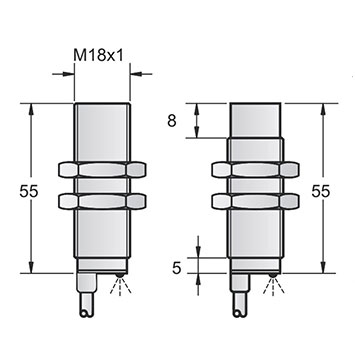

| S-I□S18-C□ | S-I□S30-C□ |
|
|
