Detailed description
| Response Frequency | 50 Hz | |||
| Switching Hysteresis | <15%(Sr) | |||
| Response Time | 1.5ms | |||
| Operating Voltage | DC:10～30VDC±10%/ | |||
| Repeat Accuracy | <3.0%/5.0%(Sr) | |||
| Load Current | 150mA Max | |||
| Overload Trip Point | 180mA | |||
| Residual Voltage | <1.5V | |||
| Operating Temperature | -25°C～+70°C | |||
| Circuit Protections | Max.120mA overload, short-circuit protection | |||
| Shock/vibration | IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2 | |||
| EMC | RFI>3V/M / EFT>1KV / ESD>4KV(contact) | |||
| Material | Teflon materials | |||
| Wiring Method | PUR φ3(φ5)×2M/3-wires (connector type offered) | |||
| Protection Degree | IP67 | |||
| Models |
Sensing Face |
Max. Sensing Range |
Standare Targets | Outputs |
|
S1T–P1203N-O3A2 |
M12 (Flush) | ▄▄ 1~3mm | -- | NPN.NO. |
| S1T–P1203N-C3A2 | NPN.NC. | |||
| S1T–P1203P-O3A2 | PNP.NO. | |||
| S1T–P1203P-C3A2 | PNP.NC. | |||
| S2T–P1206N-O3A2 | M12 (Non-Flush) | ▄▄ ▄1~6mm | -- | NPN.NO. |
| S2T–P1206N-C3A2 | NPN.NC. | |||
| S2T–P1206P-O3A2 | PNP.NO. | |||
| S2T–P1206P-C3A2 | PNP.NC. | |||
| S1T–P1808N-O3A2 | M18 (Flush) | ▄▄ ▄1~8mm | -- | NPN.NO. |
| S1T–P1808N-C3A2 | NPN.NC. | |||
| S1T–P1808P-O3A2 | PNP.NO. | |||
| S1T–P1808P-C3A2 | PNP.NC. | |||
| S1T-P1808N-S4A2 | NPN.NO.NC | |||
| S1T-P1808P-S4A2 | PNP.NO.NC | |||
| S2T–P1815N-O3A2 | M18 (Non-Flush) | ▄▄ ▄▄1~15mm | -- | NPN.NO. |
| S2T–P1815N-C3A2 | NPN.NC. | |||
| S2T–P1815P-O3A2 | PNP.NO. | |||
| S2T–P1815P-C3A2 | PNP.NC. | |||
| S2T-P1815N-S4A2 | NPN.NO.NC | |||
| S2T-P1815P-S4A2 | PNP.NO.NC | |||
| S1T–P3015N-O3A2 | M30 (Flush) | ▄▄ ▄▄1~15mm | -- | NPN.NO. |
| S1T–P3015N-C3A2 | NPN.NC. | |||
| S1T–P3015P-O3A2 | PNP.NO. | |||
| S1T–P3015P-C3A2 | PNP.NC. | |||
| S1T-P3015N-S4A2 | NPN.NO.NC | |||
| S1T-P3015P-S4A2 | PNP.NO.NC | |||
| S2T–P3030N-O3A2 | M30 (Non-Flush) | ▄▄ ▄▄▄1~30mm | -- | NPN.NO. |
| S2T–P3030N-C3A2 | NPN.NC. | |||
| S2T–P3030P-O3A2 | PNP.NO. | |||
| S2T–P3030P-C3A2 | PNP.NC. | |||
| S2T- P3030N-S4A2 | NPN.NO.NC | |||
| S2T- P3030P-S4A2 | PNP.NO.NC |

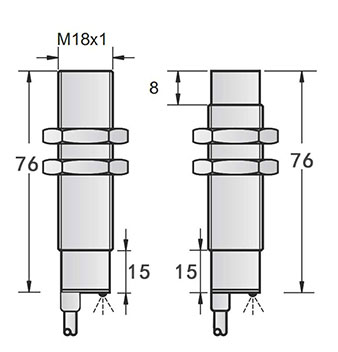

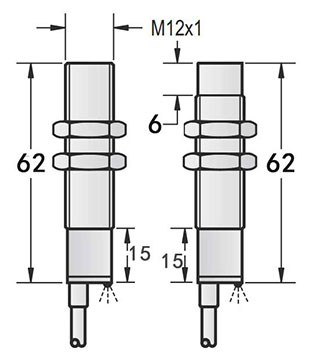

| S□T-P12□□□-□□□□ | S□T-P18□□□-□□□□ |
|
|

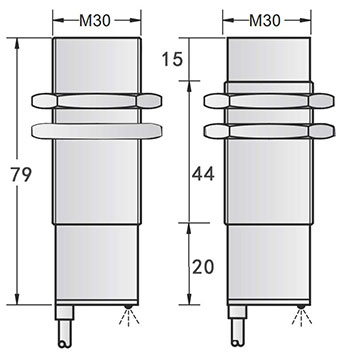

| S□T-P30□□□-□□□□ |
|
|
|
