S-W series Window Falling Objects Detecting Sensor

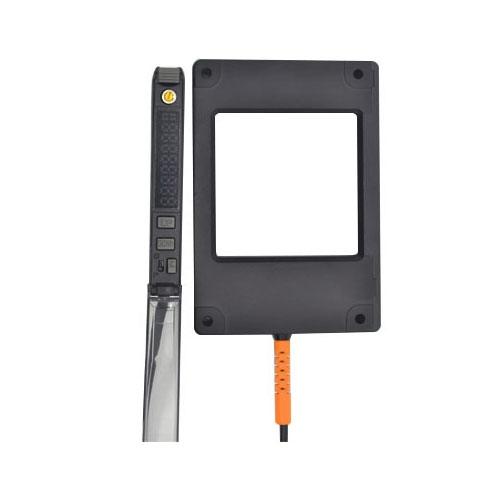

S-W series Window Falling Objects Detecting Sensor, speacilly for packing machine counting, or connected with Counter, 120*120, 50*50, 21*21 for options, easily set via digital display monitor on panel.

Detailed description

1. Falling objects detection, Min. detectable upto 0.2*0.5mm;
2. Frame 120*120mm, 50*50mm, 21*21mm window size;
3. Can be connected with counter or auto packing machine, PNP or NPN for choice;
4. Digital display and buttons setting.

Models Guide:

Models	Frame Size	Min.Sensing Targets	Outputs
S-W120120	120*120mm	Φ1.2mm	NPN.NO.NC.
S-W120120P	120*120mm	Φ1.2mm	PNP.NO.NC.
S-W5050	50*50mm	Φ0.5mm	NPN.NO.NC.
S-W5050P	50*50mm	Φ0.5mm	PNP.NO.NC.
S-W2121	21*21mm	Φ0.2mm	NPN.NO.NC.
S-W2121P	21*21mm	Φ0.2mm	PNP.NO.NC.

Note: with "N" mean NPN.NO.NC, with "P" mean PNP.NO.NC

Specifications:

Light Source	Infrared (invisible)
Outputs	NPN	PNP
Connecting	2M cable with interface
Supply voltage	12-24VDC ±10% ripple P-P10% below
Current consumption	Less than 480nW 40mA or less
Detection output	NPN output type: NPN open-collector transistor Maximum sink current: 100mA Voltage：24VDC or less（when detecting or between 0 to 24 VDC) Residual voltage: 1.0V or less (current 50mA) ,0.4 V (current 16mA)
	PNP output type: PNP open collector transistor Maximum flow current：100mA Voltage：24VDC or less（when detecting or between 0 to 24 VDC) Surplus voltage: 1.0 V or less (current 100 mA),1.0 V (current 16 mA)
Output operation	Detecting ON or not detecting ON , ON/OFF switch choice.
Short circuit protection	Polarity protection / Circuit protection
Indicator	Power light: green, Output light: orrange
Sensitivity function	Adjusted via button setting
Loading current	100mA Max.at DC 24V
Isolating impedance	20M Ω min.(DC500V)
Insulation compression	AC500V 60Hz for 60sec
Protection level	IP63
Timer function	1ms ~9999ms output delay adjustment
Operating environment temperature	-10~+50℃ （no-freezing,no-dew） Storage：-20~+70℃
Operating environment humidity	35~85%RH , Storage：-：35~85%RH
Material	Housing : PC+ABS
Accessories	--

....
