CDR M18 rectangular Photo sensor two install methods

CDR M18 rectangular Photo sensor two install methods, diffuse, retro-reflective, and though beam type offered, small size, amplifier built-in, NPN and PNP optional, M12 connector type available, OEM supported.

Detailed description

1. Cylindrical and rectangle shape, amplifier built-in, similar to proximity sensor appearance;
2. Small size, suitable for most of applications;
3. Three detection method: Diffsue, retro-reflective, and Through beam Type;
4. High lighting LED indicator, two ways installation, Can be M18 or screws installation;
5. Short-circuit protection and reverse polarity protection, sensing range adjustable.

Models Guide:

Sensing Type	Head	Models	Sensing Method	Sensing Range	Weight (g)	Outputs
	M18	CDR-40NC	Diffuse	400mm	Approx.70	NPN.NO.NC.
		CDR-40PC				PNP.NO.NC.
	M18	CDR-300NC	Retro-Reflective	3000mm	Approx.85	NPN.NO.NC.
		CDR-300PC				PNP.NO.NC.
	M18	CDR-1000NC	Through-Beam	10m	Approx.120	NPN.NO.NC.
		CDR-1000PC				PNP.NO.NC.

PS: with "N" mean NPN.NO.NC, with "P" mean PNP.NO.NC

Specifications:

Sensing Ways	Thr-beam type	Retro-reflective type	Diffuse type

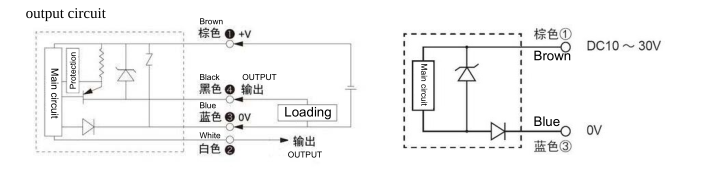

Output Method	NPN.NO/NC / PNP.NO.NC
Light Source	Infrared lights
Ambient Operating Illumination	Incandescent lamp: ≦3000Lux ; Sunshine: ≦10000 Lux
Protection loop	Reverse polarity protection, short-circuit protection
Operating Voltage	10~30 VDC ±10% (P-P) 10% below
Current Consumption	DC: 45mA Max	DC: 25mA Max	DC: 25mA Max
Load Current	200mA Max
Vibation Resistance	10~55Hz; 1.5mm X,Y,Z direction lasting 2 hours
Shock Resistance	500m/s (Approx.50g) / X,Y,Z direction lasting 2 hours
Residual Voltage	≦1 VDC
Ambient Humidity	35%-85% RH
Operating Temperature	-25℃~+70℃ (no-freezing), storage: -30℃~+80℃
Housing	PC, PMMA (lens)
Protection Degree	IP65
