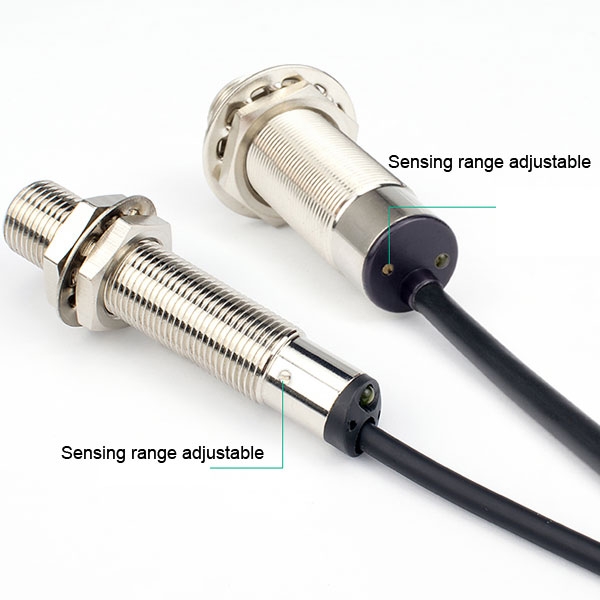

RZR series M18/M12 cylinder laser sensor

RZR series laser sensor, M18, laser light source, refletive and through-beam model for you choice, detection distance can be customized, light beam upto Ф0.5mm, application on small objects detected, hole detection, narrow gap detection etc. it have a low price and high quality.

Detailed description

Model	RZR-D400□	RZR-T30K□
Sensing Type	Reflective Type (M18)	Through-Beam Type (M18)
Detected Distance	400mm (can be customized)	30M (can be customized)
Output Method	NPN.NO/NC / PNP.NO.NC
Rimitting Terminal Angle	less 6°
Receiving Terminal Angle	between - 8° to +8°
Ambient Operating Illumination	Incandescent lamp: ≦3000Lux ; Sunshine: ≦10000 Lux
Operating Voltage	10~30 VDC
Light Axis Adjusted Angle	Horizontally ± 30 ° vertically ± 30 °
Respone Time	less 3ms
Operating Current (rimitting)	35mA
Ambient Humidity	35%-85% RH
Operating Temperature	-25℃~+55℃ (no-freezing), storage: -30℃~+80℃
Housing	ABS
Protection Degree	IP67
Wiring Method	Pre-wire 3M/3-wires	Pre-wire 3M/3-wires
Weight	Approx.150g	Approx.300g

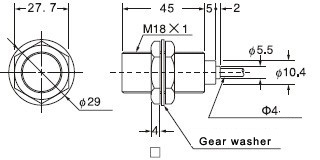

Dimension (Unit:mm)

dimension_of_RZR_series_laser_sensor
