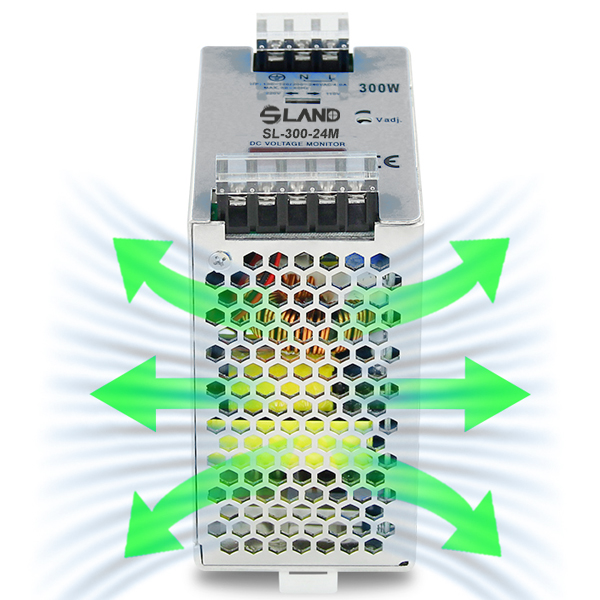

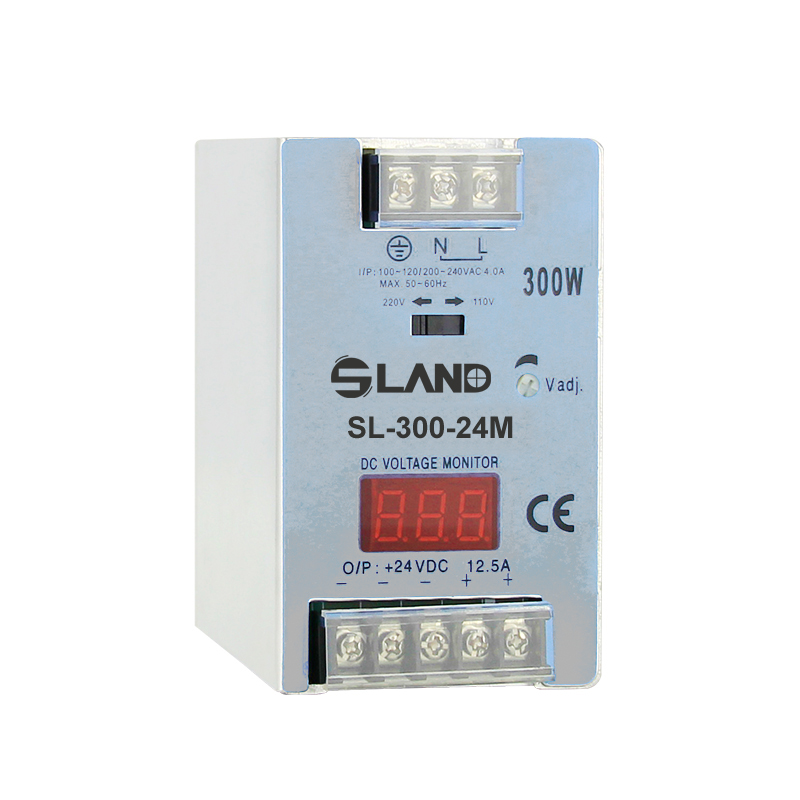

300W switching power supply AC to DC

SL-300 Series 300W switching power supply, 12V, 24V, 48V output optional, Circuit protection, overload protection.
Detailed description


  • 1. Digital number of output voltage display;
  • 2. Circuit protection, overload protection, overvoltage protection;
  • 3. 300W, DC output 12V, 24V, 48V optional;
  • 100% full load burning test;
  • LED power indicator.



Models SL-300-12M

SL-300-24M

SL-300-48M
Output voltage&currents 12V , 0~23A 24V , 0~12.5A 48V , 0~6.25A
Rated ouput current 23A 12.5A 6.25A
Adjustable range of output voltage 10.8~13V 20.5~26.50V 44.5~51V
Efficiency 83% 83% 85%
Output voltage tolerance ±1% ±1% ±1%
Ripple and noise 240MVP-P 240MVP-P 300MVP-P
AC input voltage range 85~132VAC/176~264VAC or 248~373VDC 47~63Hz
Surge current during cold start 15A / 115V , 30A / 230VAC (cold-start current)
AC input current 3A / 115VAC , 1.5A / 230VAC
Leakage current <2mA / 240VAC
Overload protection 110%-150%
Protection mode: cut off output and reset automatically
Over voltage protection 13.1~14VDC 27~30VDC 51~54VDC
Protection mode: cut off output and reset automatically
Work temperature humidity -10℃~+50℃, 20%~90%RH
Storage temperature humidity -20℃~+85℃, 10%~95%RH
Shock resistance 10~500Hz, 2G 10min.per time, Duration: 60Min. each shaft
Voltage withstand capacity I/P-O/P: 2KVAC, I/P-F/G: 1.5KVAC, O/P-F/G: 0.5KVAC,
Insulation Resitance I/P-O/P , I/P-F/G , O/P-F/G: 100M Ohms/500VDC
Safety Standards CE
EMC standards --

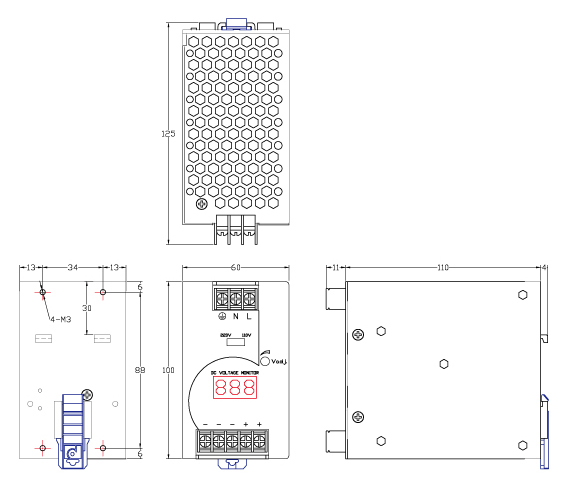

Dimension ( L*W*H ) 100*60*110 mm
Weight 0.65KGS
