AC/DC photoelectric sensor S-HR series
  • AC/DC photoelectric sensor S-HR series
  • AC/DC photoelectric sensor S-HR series
  • AC/DC photoelectric sensor S-HR series
  • AC/DC photoelectric sensor S-HR series

AC/DC photoelectric sensor S-HR series

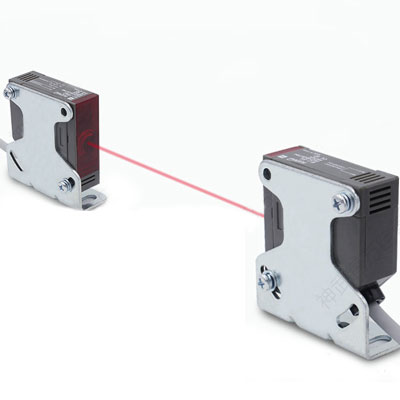

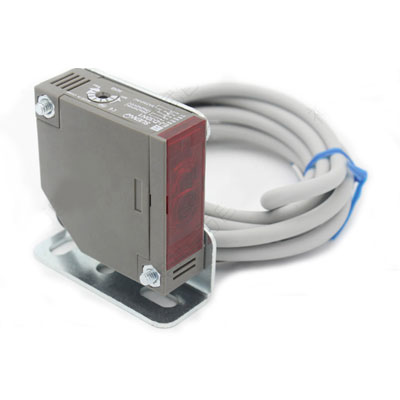

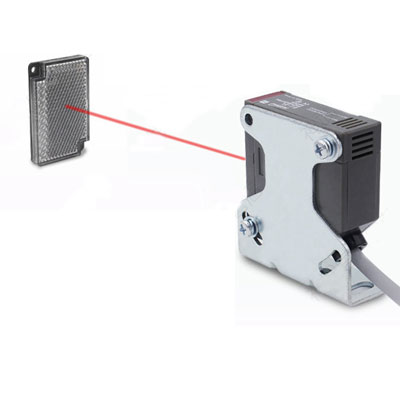

AC/DC two in one together photoelectric sensors, long range sensing distance, with M.S.R function for some models, invisble and visible light source optional.
Detailed description


  • 1. Long range photoelectric sensors, relay inside;
  • 2. AC/DC one together;
  • 3. 3-wires NO/NC switched;


Models Guide:



Sensing Type Connecting Sensing Range Outputs Sensing Action Models
  2M cable 5000cm,
visible light 		Relay Light ON S-HR5000N
Dark ON S-HR5000N2
Light ON S-HR5000P
Dark ON S-HR5000P2
2M cable 500cm,
Invisible light 		Light ON S-HR500N
Dark ON S-HR500N2
Light ON S-HR500P
Dark ON S-HR500P2
    2M cable type 500cm,
visible light
with MSR function 		Relay NPN.NO.NC S-HR500N
PNP.NO.NC S-HR500N2
NPN.NO.NC S-HR500P
PNP.NO.NC S-HR500P2
2M cable type 300cm,
visible light
with MSR function 		NPN.NO.NC S-HR300N
PNP.NO.NC S-HR300N2
NPN.NO.NC S-HR300P
PNP.NO.NC S-HR300P2
2M cable type 100cm,
visible light 		Relay NPN.NO.NC S-HR100N
PNP.NO.NC S-HR100N2
NPN.NO.NC S-HR100P
PNP.NO.NC S-HR100P2
2M cable type 30cm,
Invisible light 		NPN.NO.NC S-HR30N
PNP.NO.NC S-HR30N2
NPN.NO.NC S-HR30P
PNP.NO.NC S-HR30P2

PS: with "N" mean NPN.NO.NC, with "P" mean PNP.NO.NC


Specifications:

Sensing method Thr-beam type Reflective type Diffuse type
Sensing range 5m 50m 2m 5m 300-1000mm
Standard of sensing objects Opaque objects: 14.8mm Min. White paper:100*100mm
Operating voltage 12~24VDC (P-P±10% Max) ; 24-240VDC AC±10% 50/60Hz
Consuming current DC/AC 1A Max.
Sensing action Light ON Light ON Dark ON
Control output AC 250V (3A Max.) , DC 5V (10mA Min.)
Sensing differential ---- Sensing range 20% below
Response time 30ms Max.
Sensing angle Receiver: 3-20。 ---
Service life of the product Machinery: 50,000,000 times Min. (switching frequency: 18,000 times/h)
Electrical: 100,000 times Min. (switching frequency: 18,000 times/h)
Light source Infrared 950nm
Operating environment Incandescent lamps: 3,000Lux Max.
Working: 25-170℃, Storage: 40-105℃, No icing/dew
Working: 45-85%RH, Storage: 35-95%RH, No icing/dew
Insulating resistant 20MΩ Min. (DC: 500V)
Withstand voltage AC 1,500V 50/60Hz 1Min.
Vibration 10-55Hz Double amplitude 1.5mm X, Y, Z Each direction last for 2 hours
Impact Durability 500m/s2 X, Y, Z Each direction 3 times
Wrong respones 100m/s2 X, Y, Z Each direction 3 times
Protecting IFC-IP64
Material Housing ABS
Sensing surface Acrylate resin
Weight approx.420g approx.250g
Accessories Screws, bracket, reflector







View more detail from the link below

PDF of S-HR series>>
